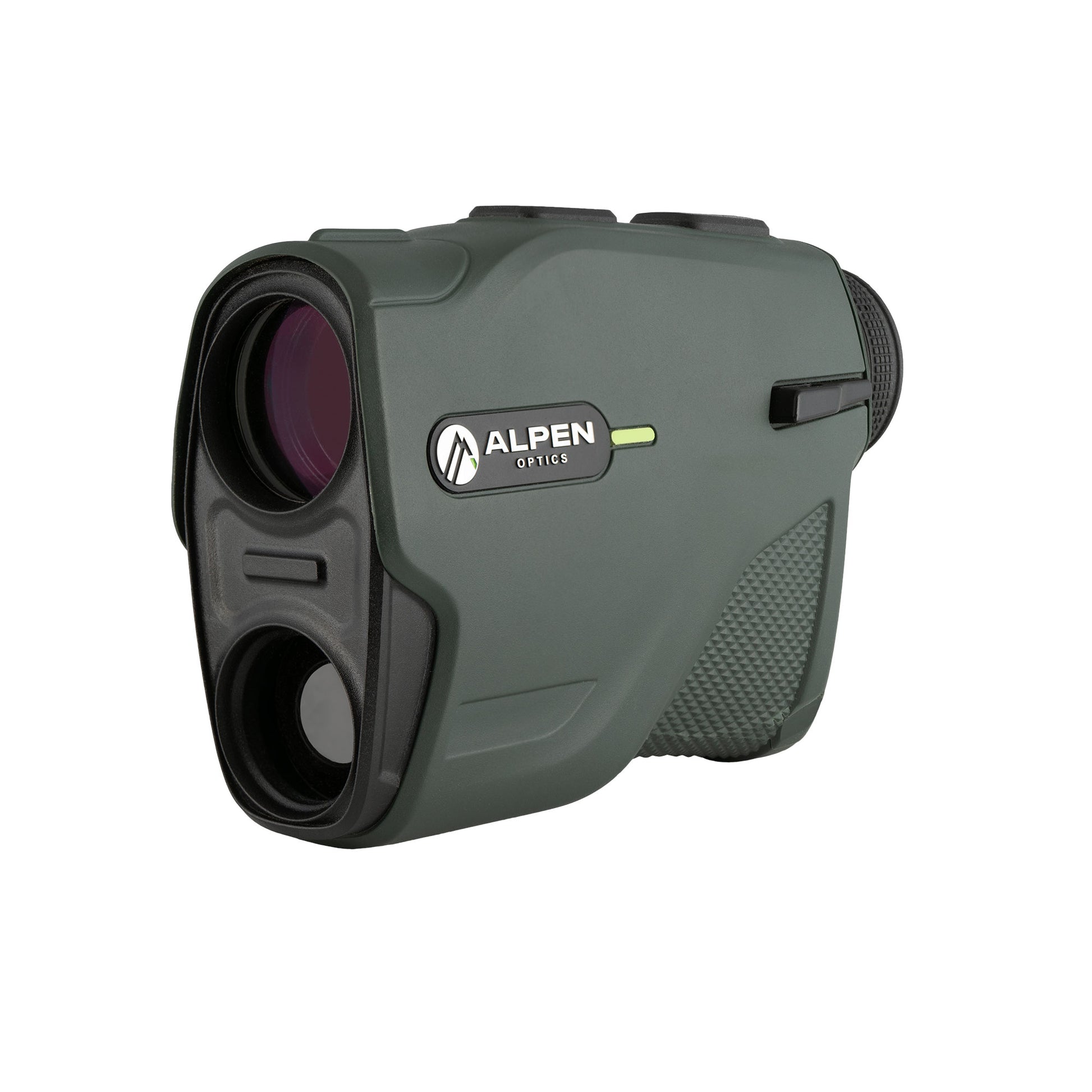

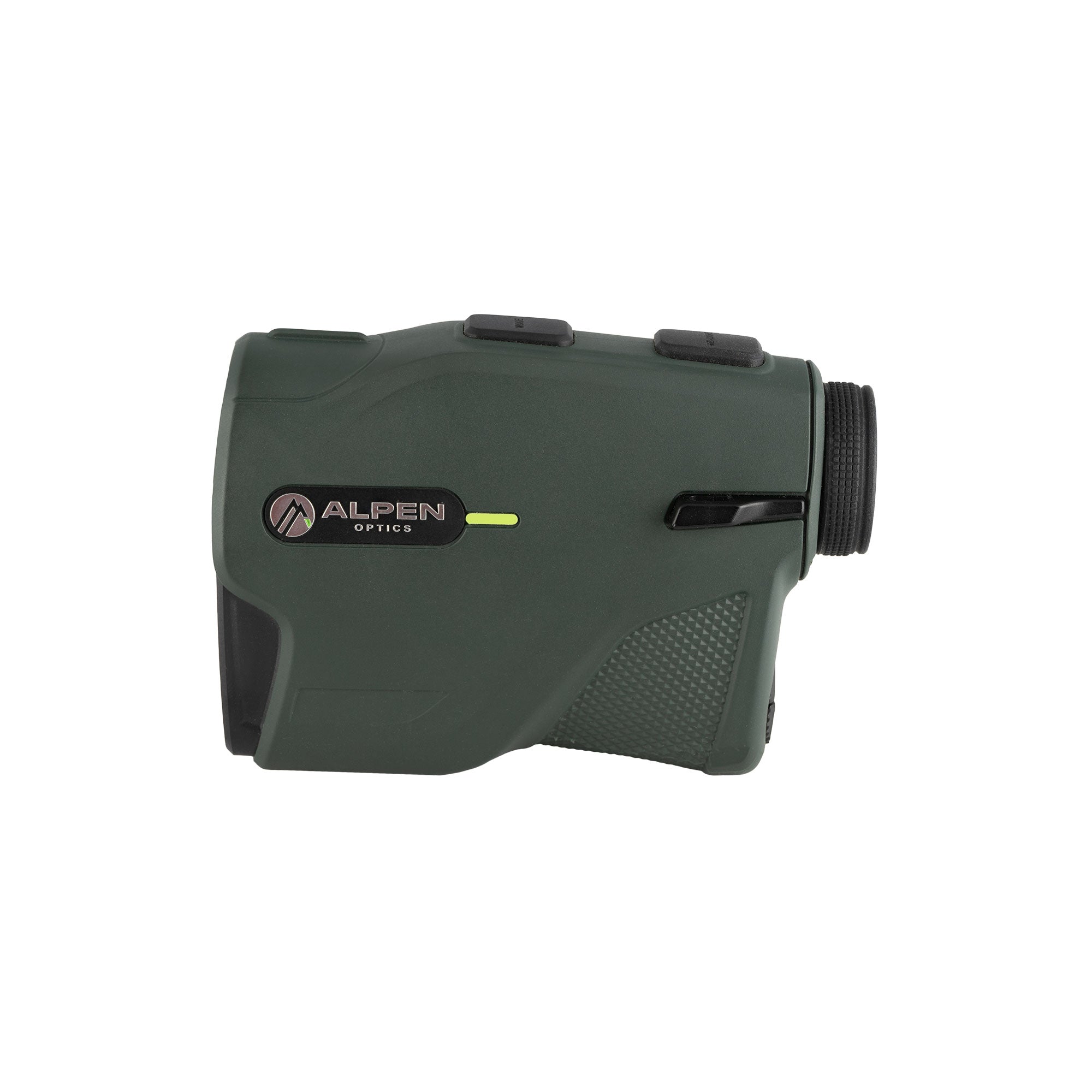

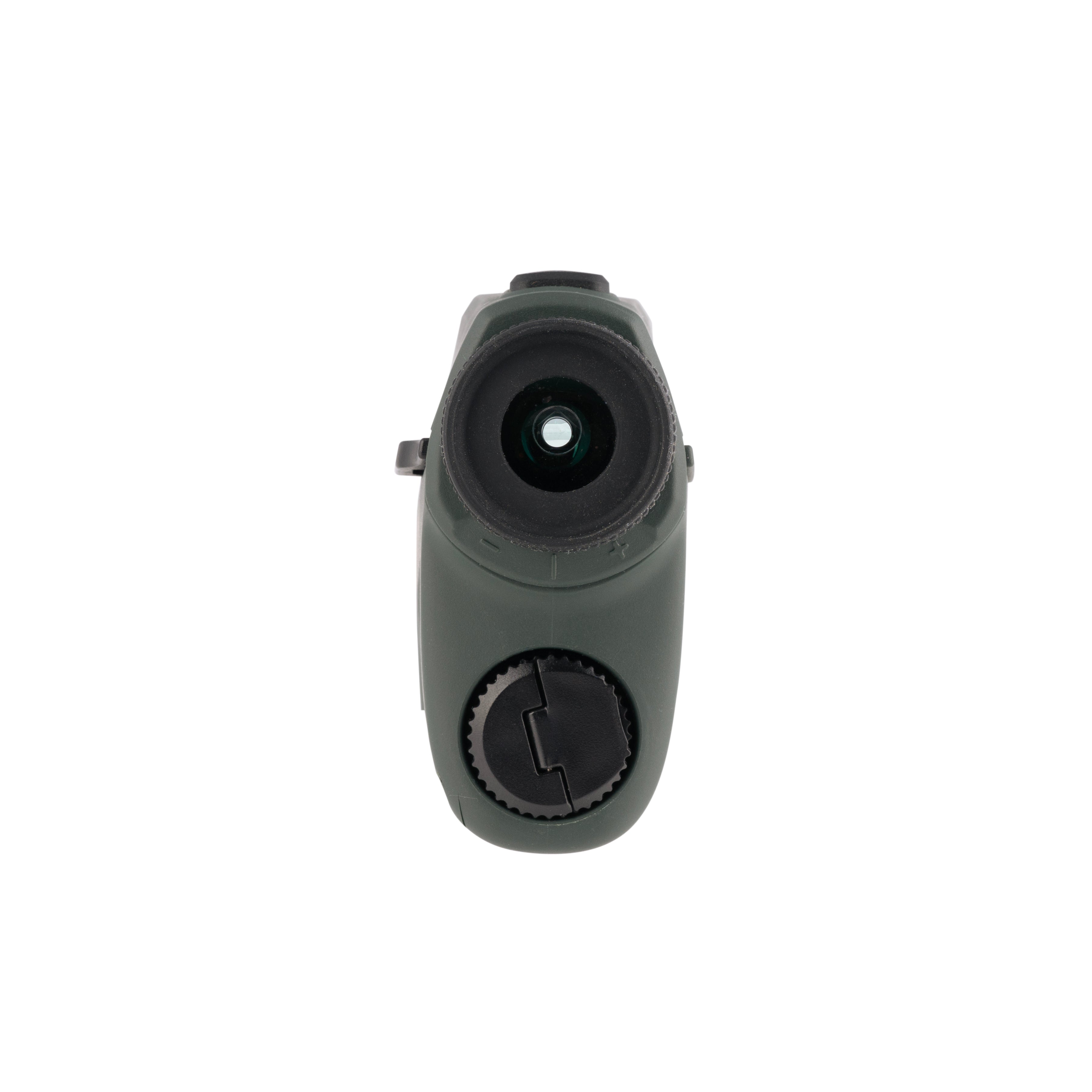

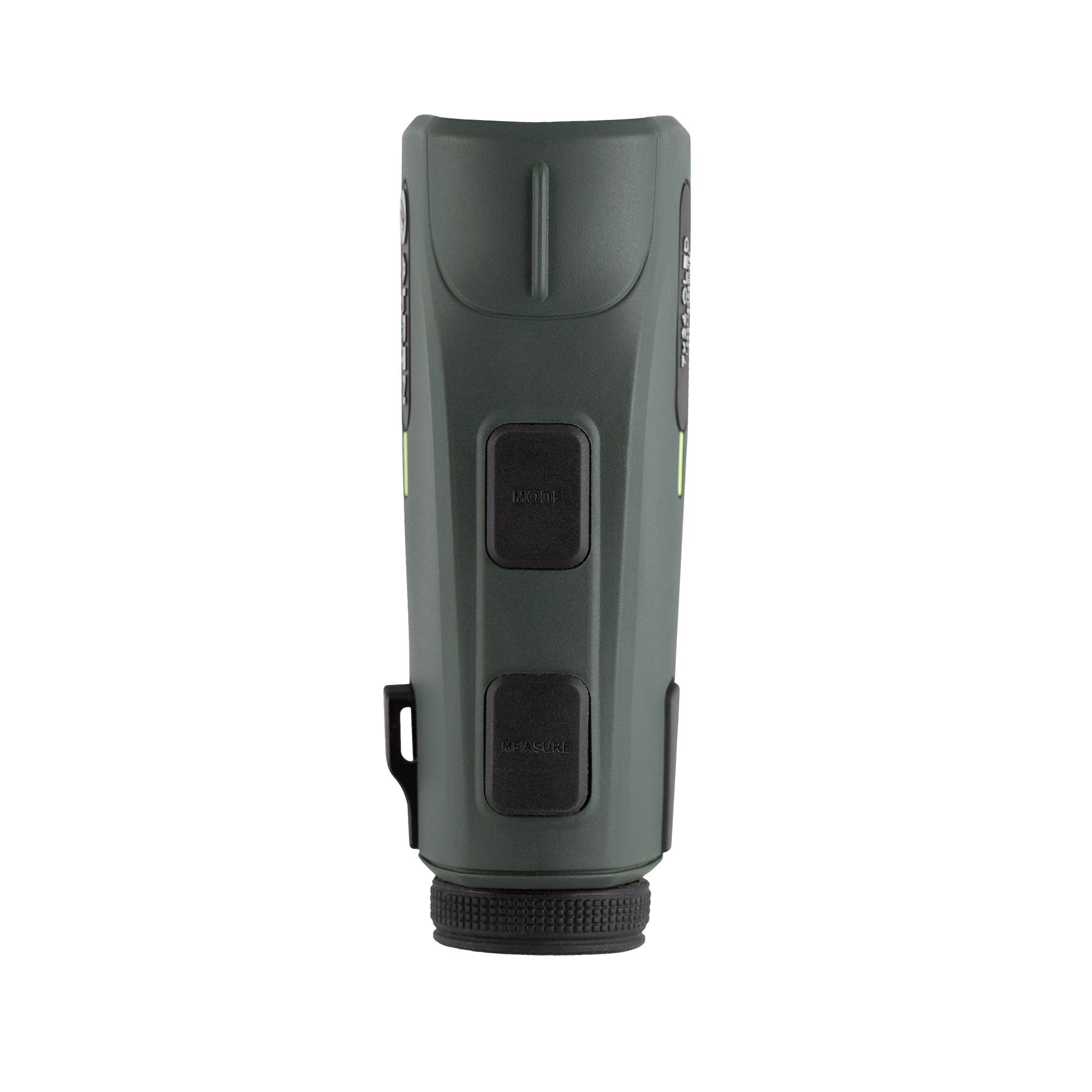

CRESTONE XP 7x24 - OLED Laser Rangefinder
Now Available!
Features
- OLED projected red readout with adjustable brightness
- LOS and HCD Scan Modes
- Compact and contoured design for best hand fit and grip
- 7x magnification with a 24mm objective lens
- Hard target measurement up to 2000 yards (1828 meters)
- Soft target measurement up to 700 yards (640 meters)
- Reticle can be dimmed / brightened to 6 different levels for low light and bright conditions
- Choose between yards or meters
- Water-resistant IPX4 rating
- Multi-coated lens
- Case and Lanyard Included
- (1)CR2 Battery Included
CA Residents: Prop 65 WARNING(S)
Description
Outdoor sports enthusiasts can get the precise measurements they need to connect with their target with the Alpen 7x24 OLED Rangefinder. This compact device, which has an easy-to-grip dual-barrel design, quickly and accurately measures distances up to 2000 yards for hard targets and 700 yards for soft targets. The measurements, which can be given in yards or meters, are shown on an OLED display with a red readout and adjustable brightness.
Additional features include a 24mm objective lens, 7x magnification power and a reticle with six different brightness levels to accommodate changes in surrounding light conditions. A soft pouch is included for protection during storage and transit.
LOS & HCD Modes
Line of Sight Mode (LOS): In the LOS Mode, the following information is displayed: Horizontal distance to the object and the angle that the device is being held in relation to the target.
Angle Measurement: The angle of measurement between your position and any target can be displayed in the upper area of the display.
Horizontal Component Distance Mode (HCD): The HCD mode shows you the horizontal and straight distance to the target.
SPECS
| Item Number | 890LR |
| Magnification | 7x |
| Objective Lens | 24mm |
| Transmission Diameter | 18mm |
| Field of View | 6.6° |
| Eye Relief | 0.55in / 14mm |
| Exit Pupil | 0.13in / 3.4mm |
| Diopter Focus | -3.0 - +3.0 |
| Waterproof | IPX4 Water-Resistant |
| Lens Coating | Multi-Coated |
| Auto-Off | 10 seconds |
| Units of Measure | Yards & Meters |
| Distance Range Min. | 5m/6yds |
| Distance Range Max. | 1828m/2000yds |
| Range Reflective Target | up to 1828m/2000yds |
| Range Building Target | up to 1280m/1400yds |
| Range Tree Target | up to 914m/1000yds |
| Range Deer Target | up to 640m/700yds |
| Range Response Time | <1.5 seconds |
| Range Accuracy < 100yds | ± 1yds |
| Range Accuracy 100yds - 1000yds | ± 2yds | Range Accuracy > 1000yds | ± 3yds |
| Inclinometer Max | ± 60° |
| Inclinometer Accuracy within ±30° | ±1° |
| Inclinometer Accuracy between ±30° - ±60° | ±2° | Battery Type | (1) CR2 |
| Display Type | Red OLED |
| Laser Type | Class 3R |
| Operating Temperature Range | 14°F - 122°F (-10°C - 50°C) |
| Storage Temperature Range | -4°F - 149°F (-20°C - 65°C) |
Warranty
Limited USA One Year Warranty when product is registered within 60 days of purchase. Click Here to register.
MANUAL
To download printable PDF manual Click Here
2000YDS Range Distance
Range Reflective Target - up to 1828m/2000yds
L.O.S & H.C.D Range Modes
Line of Sight Mode (LOS) & Horizontal Component Distance Mode (HCD)

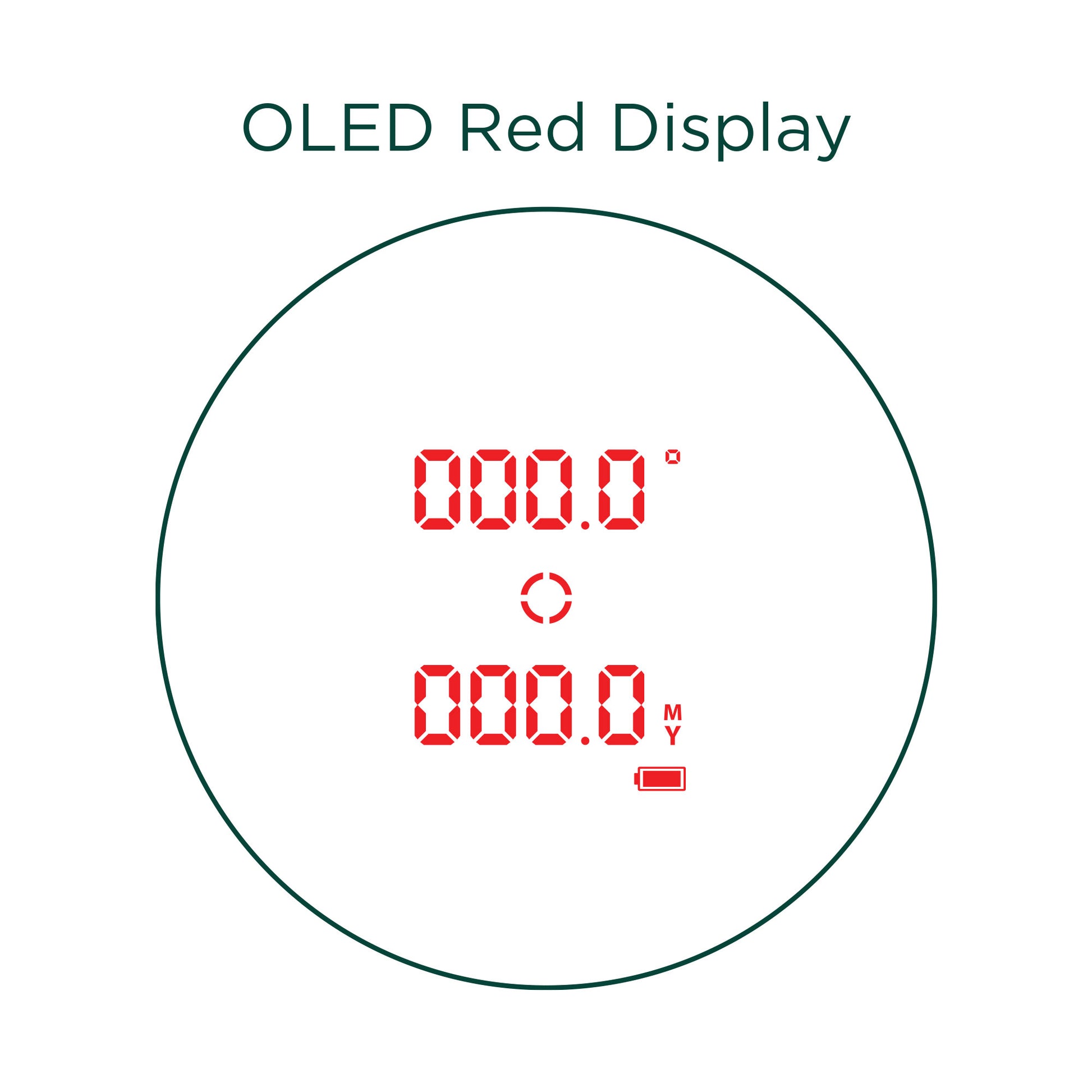

OLED Red Display
